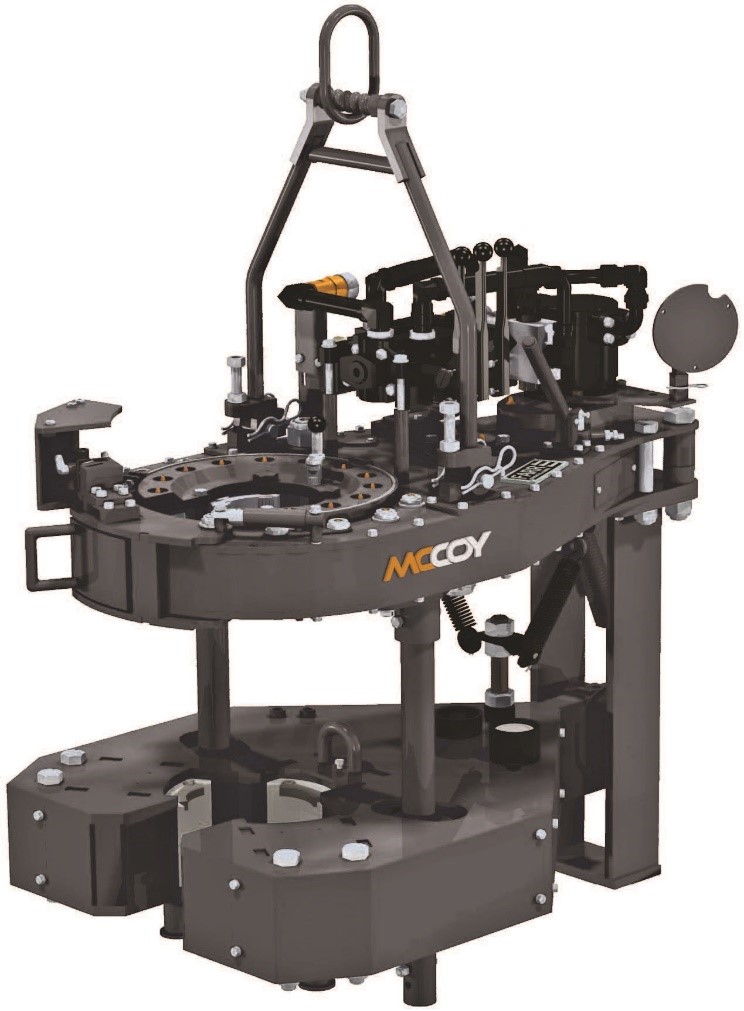

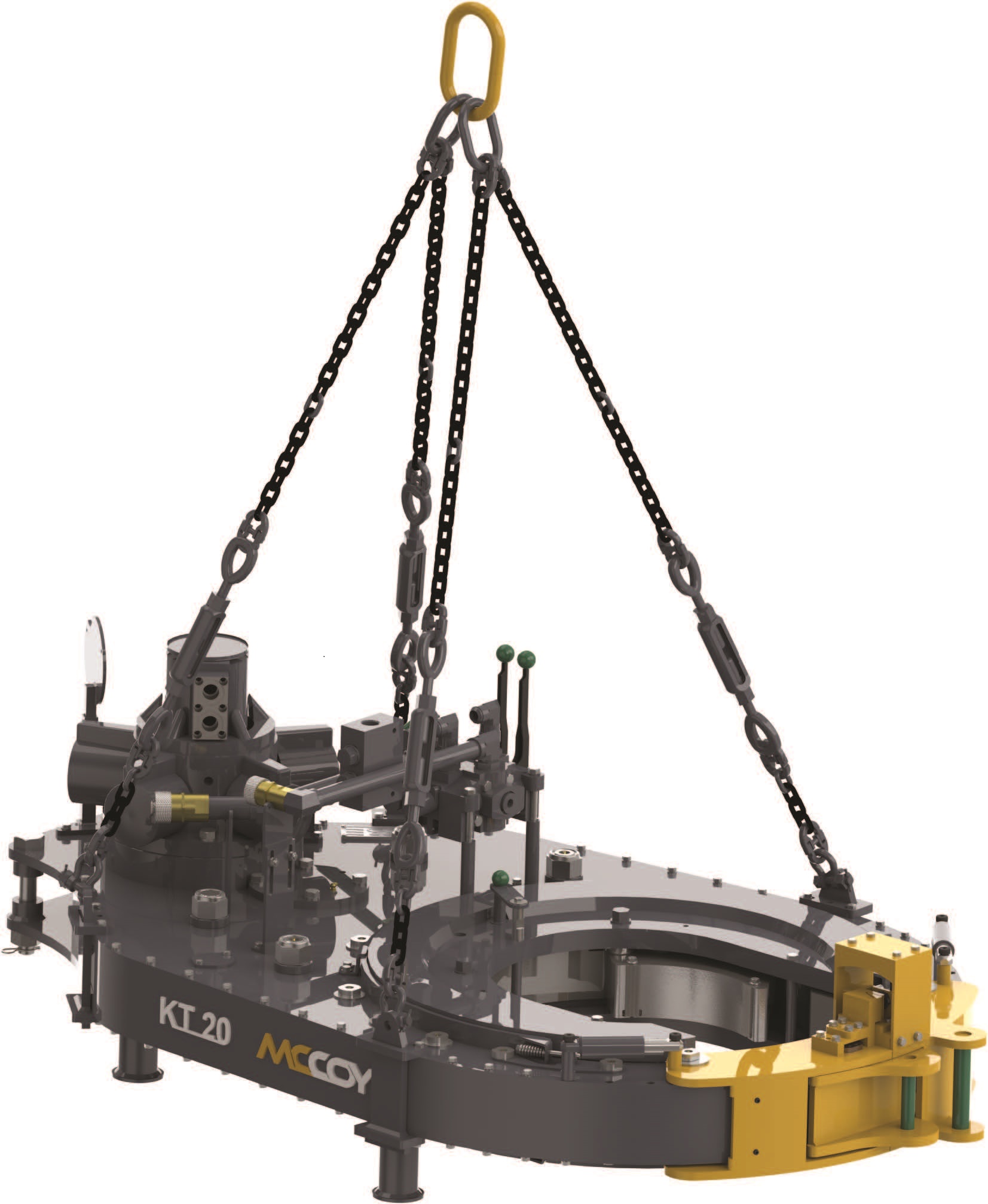

Hydraulic Power Tong 14” - CANADA / USA Origin by McCoy
|

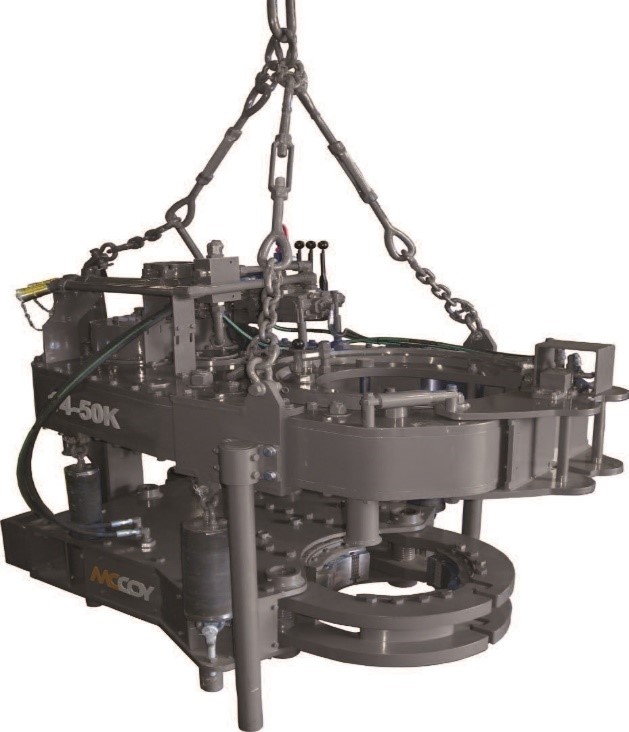

KT14000 Casing Tong Size Range: 4.500 - 14.375” Torque Low Gear:
50,000 ft.lbs. & 6 RPM Torque High Gear: 12,250 ft.lbs.
& 24 RPM All RPM based on 60 GPM Flow Rate
|
HD14000 Casing Tong Size Range: 4.500” - 14.375” Torque Low
Gear: 80,000 ft.lbs. & 4 RPM Torque High Gear: 10,500
ft.lbs. & 30 RPM All RPM based on 60 GPM Flow Rate
|
|
Weight: - without backup: 3,220 lbs. - with LOCKJAW™: 5,450 lbs.
- with Frame Mounted Wedge: 6,300 lbs.
|
Weight: - without backup: 4,600 lbs. - with LOCKJAW™: 5,750 lbs.
- with Frame Mounted Wedge: 8,300 lbs.
|
|
Optional Backups: - LOCKJAW™ 15000 - FARR Fram Mounted Wedge
14000
|
Optional Backups: - LOCKJAW™ 15000 - FARR Wedge 14000
|
|
Jaws and Dies Dovetail jaws Fine Tooth Steel & GRITFACE®
dies
|
Optional Accessories Lift Cylinder or Spring Hanger Load
Cell/Torque Gauge Rigid Bail or Chain Bail
|
| Special Features: The frame mounted backup features
an optional remotely operated scissor lift tong positioner. |
Hydraulic Power Tong 7 5/8” Chrome Master

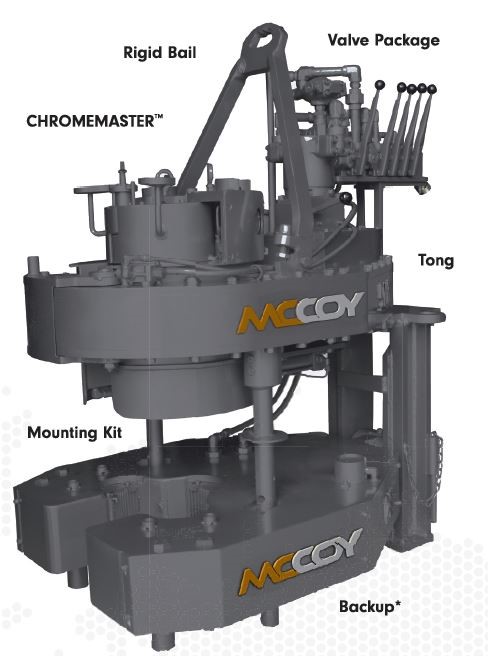

The CHROMEMASTERTM is an accessory that converts a power tong into a tong
capable of running CRA tubulars using non-marking aluminum or GRITFACE
wraparound dies. CHROMEMASTERTM features 3 or 4 jaws which center and securely
grip the pipe using high forces required for high torque applications while
supporting the tubulars to guard against deformation. All CHROMEMASTERTM feature
a manually operated pressure intensifier system. Operators can easily regulate
clamping pressures to allow non-marking makeup of thin-walled, low strength or
expandable tubular goods.
|
CHROME-MASTERTM SPECIFICATIONS
|
| MODEL NUMBER |
MAXIMUM TUBULAR SIZE |
MAXIMUM TORQUE RATING |
TONG MODEL NUMBER |
| CM5500 |
5.500" |
25,000 FT.LBS. |
CLE5500UHT; KT5500 |
| CM76251 |
7.625" |
30,000 FT.LBS. |
CLE7625UHT; KT8625 |
| CM15000 |
15.00" |
50,000 FT.LBS. |
CLE14000 |
| CM15000 |
15.00" |
75,000 FT.LBS. |
KT14000 |
Hydraulic Power Tong 5 1/2”
|
KT5500 Tubing Tong Size Range: 2.063” - 5.500” Torque Low Gear:
18,700 ft.lbs. & 16 RPM Torque High Gear: 3,750 ft.lbs.
& 81 RPM All RPM based on 60 GPM Flow Rate
|
Jaws and Dies Wraparound or Dovetail jaws Fine Tooth Steel or
GRITFACE® dies
|
|
Weights: - without backup: 1,140 lbs. - with CLINCHER® backup:
2,050 lbs. - with FARR backup: 1,700 lbs.
|
Optional Accessories Lift Cylinder or Spring Hanger Load
Cell/Torque Gauge Rigid Bail or Chain Bail CHROMEMASTER™
|
|
Optional Backups - CLINCHER® Compression or Tension 5500 -
CLINCHER® Compression or Tension 6500 - FARR Cam Style 5500
|
|

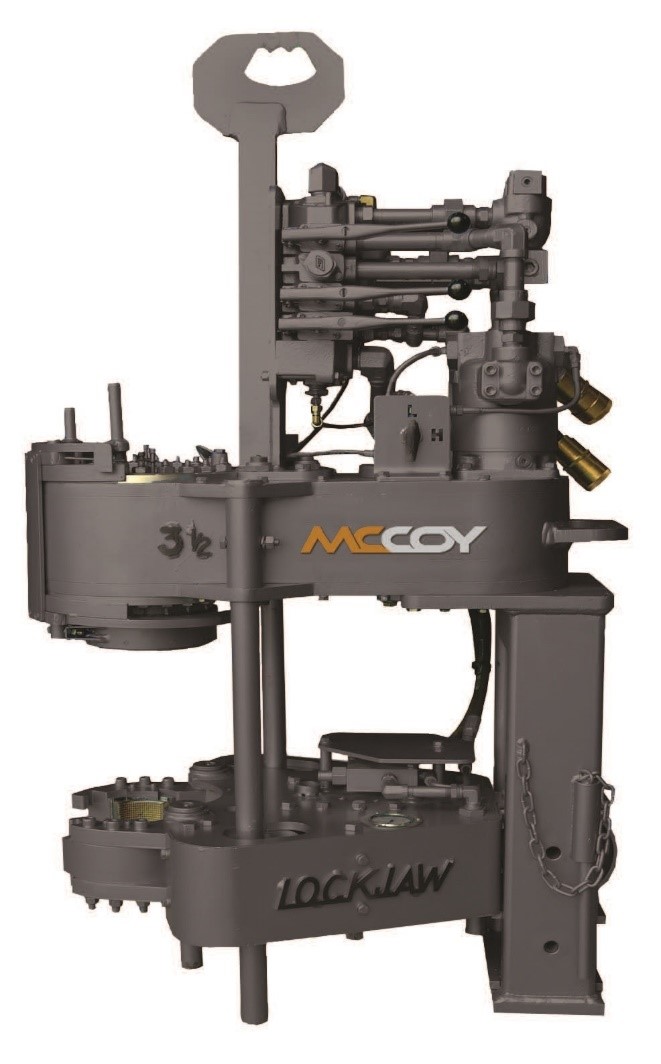

Dual Tubing Hydraulic Power Tong
|
CLE3500 Tubing Tong Size Range: 1.660” - 3.500” Torque Low Gear:
6,500 ft.lbs. & 27 RPM Torque High Gear: 3,250 ft.lbs. &
55 RPM All RPM based on 35 GPM Flow Rate Weight with backup: 900
lbs.
|
Jaws and Dies Wraparound or Dovetail jaws - Low Friction jaws
available Steel, GRITFACE® or Aluminum dies
|
|
Optional Backups - LOCKJAW™ Compression or Tension 4000 -
LOCKJAW™ Compression or Tension 4500
|
Optional Accessories Lift Cylinder Load Cell/Torque Gauge Rigid
Bail
|
|
Special features: Standard Door Sensor Tong Shutdown
|
|
